automatic high-performance washing & drying system

in through-feed method (optional treatment with de-ionized, de-mineralized or ultrapure water possible)

Automatic washing & drying system in through-feed method, for the high efficiency cleaning of medical and technical elastomers.

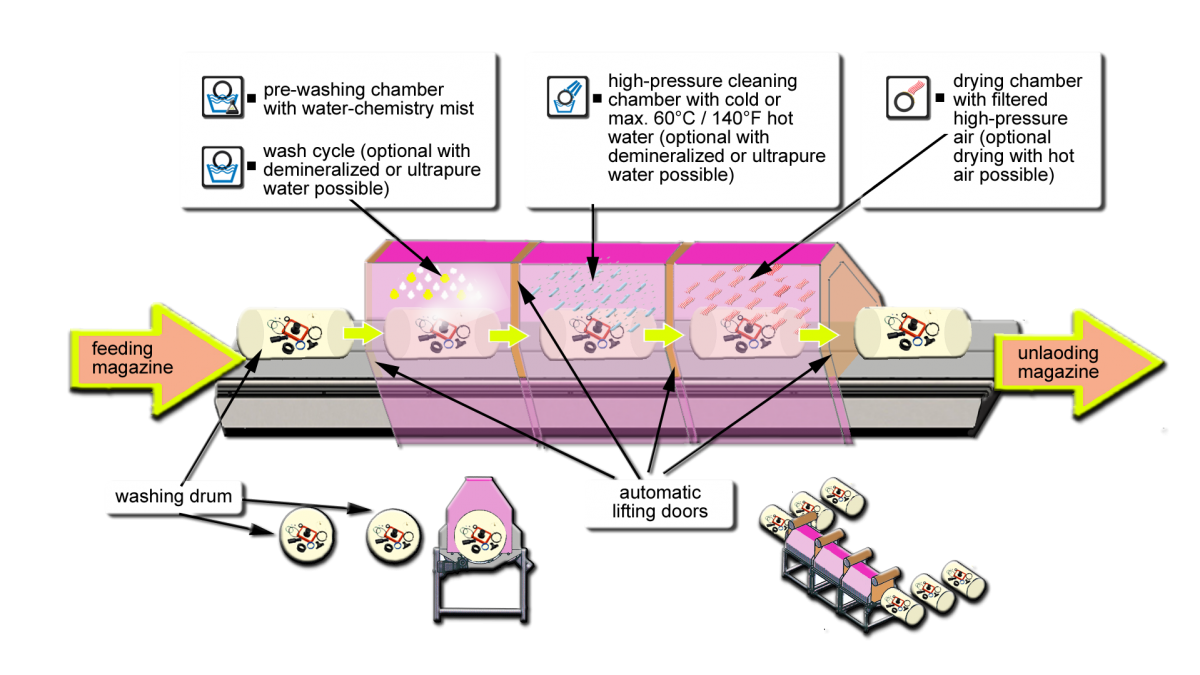

This system offers the possibility of cleaning elastomers in through-feed method with the highest efficiency (on option washing with de-ionized, de-mineralized or ultra-pure water possible). Starting from the loading station, the washing drums are conveyed automatically to each washing station (→ station pre-washing → station rinsing → station high pressure cleaning → station high pressure drying) and are finally conveyed to the unloading station after treatment.

The dimensions of this system depend on the drum dimensions desired (perforation from 3 to 15 mm possible by choice). Set as our default, the models WD3, WD5 and WD9 are available with different sizes.

For industry 4.0 demands, this system is best prepared. Standardwise, a monitoring of the processing data via network is possible also from an external working place. On option, the control of the machine via OPC-UA server can be installed additionally.

By special request, siliconisation of rubber parts or coating with other glide agents is additionally possible.

The construction of this customized system takes place in according to customers‘ specifications (requirement specification)!

brief overview:

  • type of loading: automatically, with individual feeding storage magazine and finished parts store-magazine

  • fast processing times (generally 10 – 35 minutes) per charge (volume and treatment time depend on geometry, dimension, material compound and degree of contamination of the moulded part to be treated)

  • washing cold or hot (max 60° C/140°F) – with or without chemicals possible

  • on option washing with deionized, demineralized or ultrapure water possible >upgrade installation also possible subsequently

  • drying with filtered high pressure air

  • clear & comfortable touchscreen operation, USB and optional barcode scanner

  • recipes-memory & easy loading of your own processing parameters

  • individual user management: e.g. operator limitations, password query etc, on option user log-in via barcode scanner (e.g. ID card) or ID-key possible

  • logging, documentation & traceability of all machine events (data exportable via LAN/USB, Microsoft Excel compatible data)

  • network connection (fast technical support by internet connection possible, additional monitoring of the machine’s processing data from external place possible, on option: OPC-UA server for external machine control >> industry 4.0)

  • individual drum perforation available by choice

  • on option with siliconisation or similar coating additionally possible

  • standard detergent concentrate biodegradable

  • all motors & gears are located outside the wet area

  • clever designed construction >> unsusceptible operation >> good accessibility to machine components >> low wear-out level >> long durability
